EIP-8297: Partitioned Binary Tree

Switch Ethereum state tree to a partitioned binary tree

Abstract

Introduce a new binary state tree to replace the hexary Patricia tries. Account and storage tries are merged into a single tree with variable-length, prefix-free keys that also holds contract code. Account data is broken into independent leaves grouped under a shared key prefix to provide locality.

The tree is partitioned into zones. The first byte of every key is a zone identifier that labels the category of state the key holds: account headers, contract code, or storage. Account headers and code take fixed low zones, storage takes a fixed high zone, and the remaining zones are reserved for future categories.

Note: the hash function used in this draft is not final. The reference implementation uses BLAKE3 to reduce friction for clients experimenting with this EIP, but the choice remains open.

Motivation

Ethereum’s long-term goal is to let blocks be proved with validity proofs so chain verification is as simple and fast as possible. Part of this work consists of proving the state read during EVM execution.

The Merkle Patricia Trie (MPT) is unfriendly to validity proofs: it uses RLP for node encoding, Keccak for hashing, is a “tree of trees”, and does not allow for the efficient proving of segments of bytecode. It also produces large Merkle proofs. As an example, the account trie today reaches a maximum depth of about 12, so a branch at that depth is 15 * 32 * 12 = 5760 bytes: 15 sibling hashes of 32 bytes at each of the 12 levels. From a worst-case block perspective, spending all 60M gas to touch a single byte of many distinct account codes, none of which is chunked, needs 60M/2400 * (12*480 + 64k) ≈ 1.8GB. Here 2400 is the cheapest gas to touch a fresh account, the EIP-2930 access-list address cost (a cold access under EIP-2929 costs 2600); 12*480 is the branch to that account; and 64k is the EIP-7954 64 KiB code size limit that must be revealed in full to prove any single byte of code that is not chunked.

A binary tree shrinks regular Merkle proofs, because proof size scales with siblings * log_arity(N) and arity 2 minimizes it. Switching from Keccak to a more proving-friendly hash improves circuit performance.

Partitioning the tree into zones adds two properties on top of a flat unified tree:

Structural boundaries. A key prefix of a known length is always the root of a known category: the zone byte identifies account headers, code, or storage; within storage, key_hash(address) identifies one account’s bucket. Protocols can reference these key-space regions as commitments without a side structure. Because the tree compresses shared prefixes (see “Tree structure”), a boundary does not always correspond to a distinct node at a fixed depth, but the region of keys it owns is exact. This is what later proposals for state expiry and partial statelessness build on.

Code deduplication. Code beyond the first chunks is content-addressed by code hash rather than by account, so thousands of contracts deployed from the same factory share their code leaves instead of each storing a copy.

Specification

The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “NOT RECOMMENDED”, “MAY”, and “OPTIONAL” in this document are to be interpreted as described in RFC 2119 and RFC 8174.

Notable changes from the hexary structure

• The account and storage tries are merged into a single tree.
• RLP is no longer used.
• The account’s code is chunked and included in the tree.
• Account data (balance, nonce, first storage slots, first code chunks) is co-located to reduce branch openings.

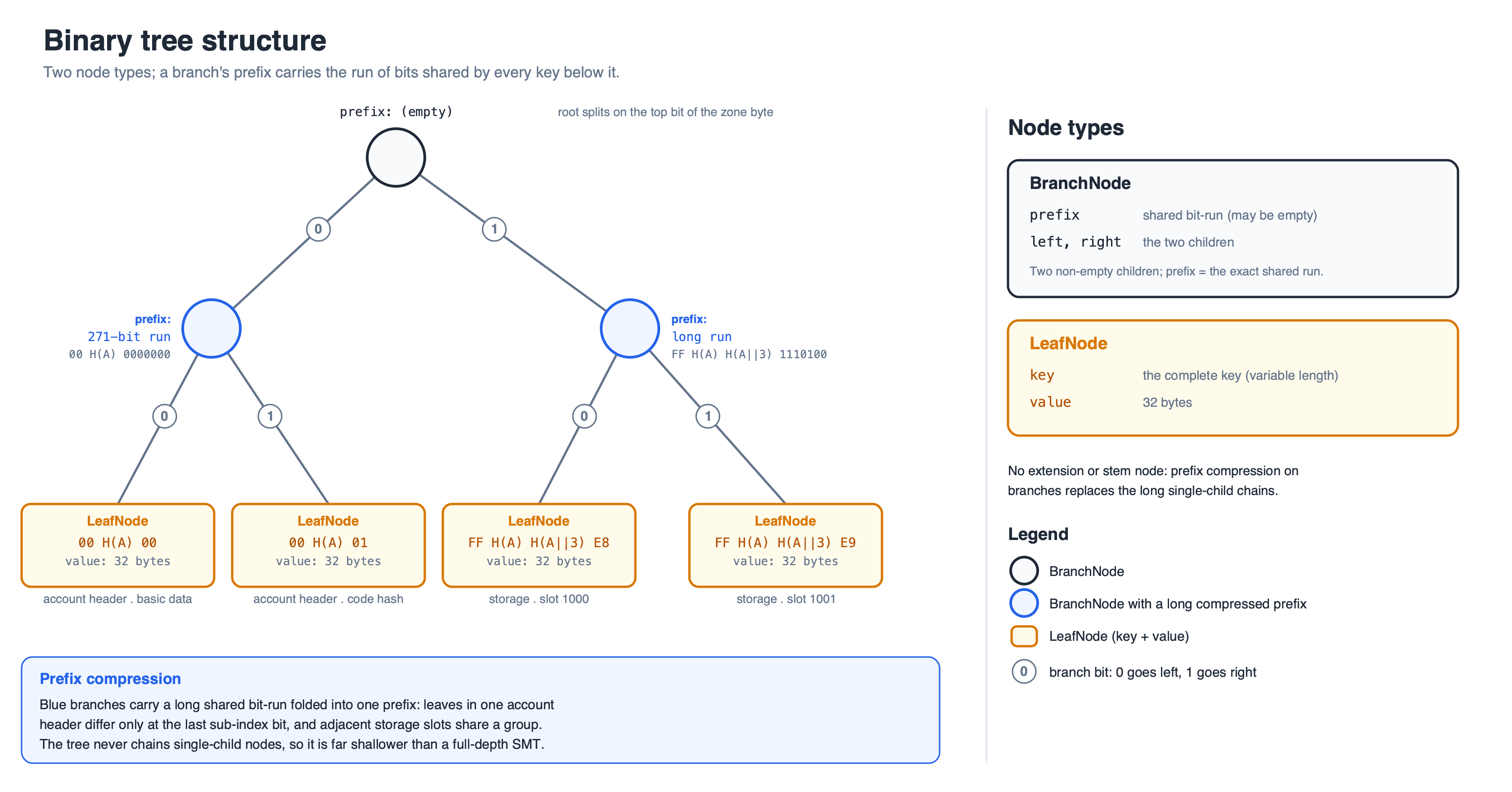

Tree structure

The tree stores key-value entries where the key is a non-empty, variable-length byte string of at most MAX_KEY_LENGTH bytes (see “Maximum key length”) and the value is 32 bytes. Keys MUST be prefix-free: no key in the tree may be a prefix of another key in the tree. Computing the root rejects keys that violate either constraint.

There are two node types:

• LeafNode has key (the complete key) and value (32 bytes).
• BranchNode has prefix (a bit string, possibly empty), left, and right.

There is no separate extension node. A BranchNode’s prefix carries the run of bits shared by every key below it that are not already consumed by an ancestor.

A BranchNode MUST have two non-empty children: a prefix shorter than the true shared run would leave the keys still agreeing at the next bit, emptying one side, which is not a valid BranchNode. This forces every prefix to be exactly the shared run, so each key/value set has exactly one valid tree.

A LeafNode commits its complete key rather than a suffix relative to its position in the tree, so its meaning never depends on where it sits; splitting or merging branches elsewhere never changes an unrelated leaf’s hash.

def _bytes_to_bits(data: bytes) -> list[int]:
    return [(byte >> (7 - i)) & 1 for byte in data for i in range(8)]

class LeafNode:
    def __init__(self, key: bytes, value: bytes):
        self.key = key
        self.value = value

class BranchNode:
    def __init__(self, prefix: list[int], left: "BinaryNode", right: "BinaryNode"):
        self.prefix = prefix
        self.left = left
        self.right = right

BinaryNode = LeafNode | BranchNode

def binarize(entries: dict[bytes, bytes], depth: int) -> BinaryNode:
    assert len(entries) > 0
    if len(entries) == 1:
        ((key, value),) = entries.items()
        return LeafNode(key, value)

    bits = {key: _bytes_to_bits(key) for key in entries}

    split = depth
    while True:
        # A key that runs out of bits while still grouped with others is
        # a prefix of theirs.
        for key_bits in bits.values():
            assert split < len(key_bits), "keys are not prefix-free"
        if len({key_bits[split] for key_bits in bits.values()}) > 1:
            break
        split += 1

    left = {k: v for k, v in entries.items() if bits[k][split] == 0}
    right = {k: v for k, v in entries.items() if bits[k][split] == 1}
    prefix = next(iter(bits.values()))[depth:split]
    return BranchNode(prefix, binarize(left, split + 1),
                      binarize(right, split + 1))

Node merkelization

Define tags LEAF_TAG = 0x00 and BRANCH_TAG = 0x01. H is the tree’s 32-byte hash function, the same function as key_hash (see the note in the Abstract).

encode_bit_prefix packs a bit string for hashing as a two-byte big-endian bit count followed by the bits themselves, most significant bit first, zero-padded to a byte boundary:

def encode_bit_prefix(prefix: list[int]) -> bytes:
    assert len(prefix) < 2**16, "prefix exceeds encodable bit count"
    packed = bytearray((len(prefix) + 7) // 8)
    for i, bit in enumerate(prefix):
        packed[i // 8] |= bit << (7 - i % 8)
    return len(prefix).to_bytes(2, "big") + bytes(packed)

Merkelize each node type as:

• leaf_hash = H(LEAF_TAG || key || value)
• branch_hash = H(BRANCH_TAG || encode_bit_prefix(prefix) || left_hash || right_hash)
• The hash of an empty tree is [0x00] * 32

def merkelize(node: BinaryNode) -> bytes:
    if isinstance(node, LeafNode):
        return H(bytes([LEAF_TAG]) + node.key + node.value)
    return H(
        bytes([BRANCH_TAG])
        + encode_bit_prefix(node.prefix)
        + merkelize(node.left)
        + merkelize(node.right)
    )

The state root of a key/value set is then:

def state_root(entries: dict[bytes, bytes]) -> bytes:
    for key, value in entries.items():
        assert 1 <= len(key) <= MAX_KEY_LENGTH, "key length out of range"
        assert len(value) == 32, "value must be 32 bytes"
    if len(entries) == 0:
        return b"\x00" * 32
    return merkelize(binarize(entries, 0))

Insertion and deletion

A mutation is an update to the entry set: insertion, which sets a key’s value, or deletion, which removes the key. Both are generic over the value space. The tree has no distinguished value that means absence: any 32-byte value may be stored, and only the presence of a key distinguishes it from an absent one. The root after a mutation is state_root of the resulting entry set.

An implementation that maintains the tree incrementally rather than rebuilding it MUST still produce that root. For deletion this means restoring the canonical form: removing a key leaves its parent branch with a single child, which MUST take that branch’s place. A surviving LeafNode is promoted unchanged, since it commits its complete key. A surviving BranchNode takes the parent’s prefix, followed by the bit that selected it, followed by its own prefix. Only the direct parent can be left with one child, so the merge is bounded to one level, and it inverts the split that insertion performs.

Maximum key length

MAX_KEY_LENGTH = 8192 bytes. The bound comes from the branch prefix encoding:

• encode_bit_prefix stores a branch’s bit count in two bytes, so the largest representable prefix is 2**16 - 1 = 65535 bits.
• A branch’s prefix is the run of bits its keys agree on, ending just before the first bit where they diverge.
• Two distinct keys of L bytes (8*L bits) must differ in at least one bit, so the longest run they can share is 8*L - 1 bits: agreement on everything except the final bit.
• To encode this, we require 8*L - 1 <= 65535, giving L <= 8192.

Keys longer than MAX_KEY_LENGTH MUST be rejected. Enforcing this on every key, rather than only inside encode_bit_prefix, keeps the bound a stated property of every key instead of a failure that depends on which other keys happen to be present: a key longer than MAX_KEY_LENGTH is not itself invalid until a second key shares enough of its prefix to overflow the count field.

Zones

The first byte of every key is the zone identifier Z.

New categories MUST be allocated from 0x02-0xFE and MUST keep their keys mutually prefix-free (see “Tree embedding”).

Tree embedding

All state is embedded into the single key/value space. Data accessed together is co-located under one shared key prefix (“stem”) to reduce branch openings. The account header holds an account’s basic data, code hash, first 64 storage slots, and first 128 code chunks under keys sharing one header stem.

It is a required invariant that STEM_SUBTREE_WIDTH > CODE_OFFSET > HEADER_STORAGE_OFFSET.

Every key produced by this embedding has a length fixed by its zone: ACCOUNT_KEY_LENGTH, CODE_KEY_LENGTH and STORAGE_KEY_LENGTH for the account, code and storage zones respectively.

Fixing one length per zone is what keeps keys prefix-free within a zone, since a shorter key of the same zone would otherwise be a proper prefix of a longer one. Keys of different zones already differ in their first byte. Implementations MUST assert the length of every key they construct.

Addresses are passed as Address32. Convert a legacy address by prepending 12 zero bytes:

def address20_to_address32(address: Address) -> Address32:
    return b'\x00' * 12 + address

A key is built from a zone byte, a hash-derived tree position, and a sub-index byte. The zone byte and the tree position together are a key’s stem:

def key_hash(inp: bytes) -> bytes32:
    return blake3(inp).digest()

def get_tree_key(zone: int, tree_position: bytes, sub_index: int) -> bytes:
    return bytes([zone]) + tree_position + bytes([sub_index])

Header values

The account header’s stem is in ACCOUNT_ZONE and is keyed by the address alone, so each account has exactly one header stem.

def get_tree_key_for_header(address: Address32, sub_index: int) -> bytes:
    key = get_tree_key(ACCOUNT_ZONE, key_hash(address), sub_index)
    assert len(key) == ACCOUNT_KEY_LENGTH
    return key

def get_tree_key_for_basic_data(address: Address32):
    return get_tree_key_for_header(address, BASIC_DATA_LEAF_KEY)

def get_tree_key_for_code_hash(address: Address32):
    return get_tree_key_for_header(address, CODE_HASH_LEAF_KEY)

version, balance, nonce, and code_size are packed big-endian in the value at BASIC_DATA_LEAF_KEY:

Bytes 1 through 3 are reserved. The 4-byte code_size holds values up to 2^32 - 1 bytes, far beyond any foreseeable contract size limit. Packing these fields into one leaf needs one branch opening instead of three or four, which lowers gas and simplifies witness generation.

Setting any header field also sets version to zero. code_hash and code_size are set on contract or EOA creation; the code hash leaf of an account with no code holds the Keccak hash of empty bytecode, unaffected by this EIP’s choice of merkelization hash (see “Backwards Compatibility”).

Code

Code chunks 0 through 127 live in the account header’s stem at sub-indices CODE_OFFSET..255. Chunks at index 128 and above live in CODE_ZONE, content-addressed by code_hash so contracts with identical bytecode share leaves.

def get_tree_key_for_code_chunk(address: Address32, code_hash: bytes32, chunk_id: int):
    if chunk_id < STEM_SUBTREE_WIDTH - CODE_OFFSET:        # chunk_id < 128
        return get_tree_key_for_header(address, CODE_OFFSET + chunk_id)
    overflow = chunk_id - (STEM_SUBTREE_WIDTH - CODE_OFFSET)
    tree_index = overflow // STEM_SUBTREE_WIDTH
    sub_index  = overflow %  STEM_SUBTREE_WIDTH
    key = get_tree_key(
        CODE_ZONE, key_hash(code_hash + tree_index.to_bytes(32, "big")), sub_index
    )
    assert len(key) == CODE_KEY_LENGTH
    return key

Chunk i stores a 32-byte value where bytes 1..31 are the i’th 31-byte slice of the code and byte 0 is the number of leading bytes that are PUSHDATA. For example, if code is ...PUSH4 99 98 | 97 96 PUSH1 128 MSTORE... where | begins a new chunk, the latter chunk begins 2 97 96 PUSH1 128 MSTORE, recording that its first 2 bytes are PUSHDATA.

PUSH_OFFSET = 95
PUSH1 = PUSH_OFFSET + 1
PUSH32 = PUSH_OFFSET + 32

def chunkify_code(code: bytes) -> Sequence[bytes32]:
    if len(code) % 31 != 0:
        code += b'\x00' * (31 - (len(code) % 31))
    bytes_to_exec_data = [0] * (len(code) + 32)
    pos = 0
    while pos < len(code):
        if PUSH1 <= code[pos] <= PUSH32:
            pushdata_bytes = code[pos] - PUSH_OFFSET
        else:
            pushdata_bytes = 0
        pos += 1
        for x in range(pushdata_bytes):
            bytes_to_exec_data[pos + x] = pushdata_bytes - x
        pos += pushdata_bytes
    return [
        bytes([min(bytes_to_exec_data[pos], 31)]) + code[pos: pos+31]
        for pos in range(0, len(code), 31)
    ]

A chunk encodes to 32 zero bytes when its 31 code bytes are all 0x00 and byte 0’s PUSHDATA count is zero too, as in a run of STOP or a zero-filled data region. Zero bytes that continue PUSHDATA from an earlier chunk do not qualify, since byte 0 then records the continuation. Such a zero chunk is absent from the tree like any other zero value (see “Zero values and deletion”). Chunk presence therefore does not delimit a contract’s code: the chunk count is ceil(code_size / 31), and an absent chunk reads back as the 32 zero bytes it would have held, so the EVM cannot distinguish the two. A contract whose code is entirely zeros has no code leaves at all and is still distinguished from an account with no code by code_size and code_hash. A witness proves such a chunk absent where it would otherwise prove its value.

Storage

Storage slots 0 through 63 live in the account header’s stem at sub-indices HEADER_STORAGE_OFFSET..127. Slots 64 and above live in the storage zone.

A storage key’s stem begins with the storage zone byte, followed by its tree position: two full hash digests.

key_hash(address) places all of an account’s overflow storage under one shared prefix.

An aligned range of STEM_SUBTREE_WIDTH slots sharing one tree_index is a storage group; its slots share a stem and differ only in the sub-index byte. key_hash(address || tree_index) spreads the account’s storage groups within that bucket. The second digest is bound to the address as well as tree_index (see “Security Considerations”).

def storage_tree_position(address: Address32, tree_index: int) -> bytes:
    prefix = key_hash(address)
    suffix = key_hash(address + tree_index.to_bytes(32, "big"))
    return prefix + suffix

def get_tree_key_for_storage_slot(address: Address32, storage_key: int):
    if storage_key < CODE_OFFSET - HEADER_STORAGE_OFFSET:   # storage_key < 64
        return get_tree_key_for_header(address, HEADER_STORAGE_OFFSET + storage_key)
    tree_index = storage_key // STEM_SUBTREE_WIDTH
    sub_index  = storage_key %  STEM_SUBTREE_WIDTH
    key = get_tree_key(
        STORAGE_ZONE, storage_tree_position(address, tree_index), sub_index
    )
    assert len(key) == STORAGE_KEY_LENGTH
    return key

Group 0 is the exception: slots 0..63 live in the header, so its storage-zone leaves are slots 64..255 only. Adjacent slots, common in mappings and arrays, share a group.

Zero values and deletion

Mapping zero to absence belongs to the state transition function, which MUST resolve a write of 32 zero bytes to a deletion rather than an insertion:

def state_write(entries: dict[bytes, bytes], key: bytes, value: bytes) -> None:
    if value == b"\x00" * 32:
        entries.pop(key, None)
    else:
        entries[key] = value

Writing zero to an absent key is therefore a no-op, no key in the state’s tree holds 32 zero bytes, and reading an absent key yields zero. Zero and absent are the same state and commit to the same root, as in the MPT (see “Collapsing zero and absent”).

Deleting an account (EIP-161 state clearing, or SELFDESTRUCT in the transaction that created the account, per EIP-6780) MUST remove its header leaves and its storage leaves. Its CODE_ZONE leaves are content-addressed and may be shared with other accounts, so they MUST be removed only if no account in the resulting state has the same code_hash, and MUST be kept otherwise.

The MPT checked storage_root to decide whether an address has non-empty storage (i.e., the that condition EIP-7610 checks before contract creation). This tree has no such node, and thus the address has non-empty storage exactly when a leaf exists at one of its header sub-indices HEADER_STORAGE_OFFSET..127 or anywhere in its storage bucket.

Fork

Activation and the migration of existing MPT state into this tree are specified in EIP-8347. Migration happens off the consensus-critical path in every case: a node either converts the state itself at a finalized anchor block, or downloads a snapshot and verifies it against the anchor’s state root. The converted state is caught up to the chain head by replaying Block-Level Access Lists, and the tree becomes the canonical state commitment at a single coordinated hard fork.

Rationale

This EIP defines the tree; it does not define how existing state is converted to it. Migration is specified in EIP-8347: the MPT state is converted offline and the tree activates fully populated at the fork.

Single tree with zones

A single key/value tree is simpler to work with than a tree of tries: database access, caching, syncing, and proof code all operate on one abstraction, and witness gas rules are clearer. Placement is hash-derived at every level: stems scatter uniformly within their zone, and an account’s storage groups scatter uniformly within its bucket, so the tree stays balanced up to the deliberate shared prefixes, which compression folds away (see “Tree depth”).

Zones add structure without giving up that balance. Each zone is a self-contained key-space region, so a node can sync, prove, or expire one category without touching the rest. Because no leaf stores a storage_root, an account’s nonce in the account zone and one of its slots in the storage zone are independent writes. The root recomputes in one bottom-up pass and the two branches meet near the root. This admits parallelism across zones, across accounts within a zone, and across stems within an account.

Storage layout

Storage is the largest state category by a wide margin and the most frequently proven, so its bucket assignment gets the strongest available guarantee: the full key_hash(address) digest gives each account its own storage bucket, with negligible chance of two accounts sharing one; the bucket is the unit later expiry and partial-statefulness schemes can prune or sync. Binding the group-spreading digest to the address as well as tree_index restricts the grinding analyzed in “Security Considerations” to the attacker’s own bucket.

Content-addressed code

Keying overflow code by code_hash rather than by account lets all contracts with identical bytecode share leaves. Most deployed contracts repeat a small number of templates, so this removes a large amount of duplicate code from the state. For the same reason, a block witness contains at most one copy of a shared chunk, no matter how many contracts touch it. The first 128 chunks stay in the account header, keyed per account, so they are removed with the account and need no reference counting. Only chunks beyond ~4 KB are shared between contracts, and only those need the check account deletion applies before removing them (see “Zero values and deletion”). That check is cheap in practice: the accounts a block deletes are those EIP-161 clears, which have no code at all, and those SELFDESTRUCT removes in their creation transaction, whose code the same transaction wrote.

SNARK friendliness and post-quantum security

The design avoids RLP and the MPT’s variable-arity branching. The dominant factor, though, is the merkelization hash, which should be efficient in and out of circuit. The choice is open, with candidates:

1. BLAKE3: good native performance, reasonable in-circuit, well-studied, currently used in the reference implementation.
2. Keccak: already in Ethereum, well-studied, less efficient to prove.
3. Poseidon2: strong in-circuit performance, security analysis ongoing through the Ethereum Foundation (EF) cryptography initiative, needs extra specification for field encoding.

Because the tree depends only on a hash function and not on elliptic curves, it remains secure against quantum adversaries; Verkle’s curve-based stack does not, and NIST guidance calls for retiring elliptic-curve cryptography by 2030. Progress in proving systems suggests pre-state and post-state proofs can be generated fast enough, matching Verkle’s main advantage.

Arity-2

Binary tries minimize witness size. In an N-element tree with k children per node, the average branch is roughly 32 * (k-1) * log(N) / log(k) bytes, minimized at k = 2. For N = 2**24:

Tree depth

The proposed design avoids a full-depth Sparse Merkle Tree (SMT), which helps reduce the hashing load in proving systems, currently a throughput bottleneck on commodity hardware.

A BranchNode’s prefix exists because storage buckets manufacture long shared runs: every one of an account’s overflow storage groups shares the same key_hash(address), up to 256 bits. Without compression this would produce long chains of branch nodes with a single occupied child. Folding the shared run into the branch’s prefix (see “Tree structure”) collapses each such chain to one node, which is also what bounds the proof-size cost of grinding a set of groups in “Security Considerations”.

Collapsing zero and absent

Collapsing zero and absent keeps the root a function of the state alone and not of the writes that produced it, as in the MPT. A client’s flat state can keep representing zero as the absence of a record, a tree rebuilt from a state dump reproduces the root, a test fixture can express any pre-state, and a tree converted from the MPT, which carries no record of slots cleared before the fork, agrees with one maintained incrementally across it. Zero also has a single representation at the proof layer.

The rule sits in the state transition function and leaves the tree generic, which is the MPT’s split: the trie is defined over arbitrary key/value pairs with no distinguished value, and the storage trie holding only non-zero slots is a property of how state maps into it rather than of the trie. Keeping the layers apart means the tree can be specified, tested, and reused without carrying a rule that belongs to the EVM’s value semantics, and a client is free to spell a zero write as an explicit delete or as a write its own tree layer collapses, since only the resulting entry set is committed. Zero is the trigger because the EVM has no other spelling of “unset”: a storage slot is a 256-bit word that reads as zero before it is ever written, and SSTORE of zero is how a contract clears one.

Accounts need no existence marker under this rule, so version stays zero as in EIP-7864. The only account whose BASIC_DATA is all zero is the empty account of EIP-161, with zero nonce, zero balance and no code, which the EVM cannot distinguish from a nonexistent account and which state clearing deletes when it is touched.

The rule applies to code chunks too, which are the one value in this tree whose zero encoding carries meaning rather than being the natural spelling of “unset” (see “Code”). Exempting them would make the rule depend on the key rather than the value, and the exemption is not a zone: chunks 0 through 127 share the account header’s stem with BASIC_DATA, code_hash, and the first 64 storage slots, so the carve-out is a sub-index range within ACCOUNT_ZONE, which every consumer of the invariant would have to reproduce. The uniform rule buys that simplicity for nothing, since code_size already delimits the code and an absent chunk reads as the zeros it would have held. What it does not buy is a smaller state, since an exemption stores only leaves whose contents are already implied by code_size.

The alternative, a zero-valued leaf that stays in the tree and is distinct from an absent key, is what a multi-tree state expiry design requires, where “absent” means the latest version of the object may be in an older tree. Expiry on this tree instead marks an expired region with a stub introduced at the expiry fork (see “State expiry”).

The cost is deletion logic in clients that maintain the tree incrementally, and re-paying state-creation gas for a slot that is cleared and later rewritten. The merge that deletion requires is bounded to one level and inverts the split insertion already performs (see “Insertion and deletion”). The gas asymmetry is a pricing question, better answered in the gas schedule than by holding roughly a hundred bytes of consensus state for every slot ever created.

State expiry

Per-account and per-bucket expiry is a natural operation on the zone topology. The storage bucket keyed by key_hash(address) roots one account’s storage in the common case. Record its hash and prune below it. The account header’s stem expires the account’s core data, hot storage, and initial code in one step. Content-addressed code needs reference counting or deferral to a state sweep, since its leaves may be shared. Resurrection re-attaches a subtree consistent with the recorded commitment. The mechanism itself is left to a separate EIP.

Backwards Compatibility

The main breaking change is that the tree structure change breaks in-EVM verification of MPT state proofs. Post-fork state roots commit to the new tree, so contracts that verify proofs against them must adopt the new tree’s proof format.

This EIP does not change the gas schedule.

The change is invisible to the EVM. Contracts address storage by 256-bit slot numbers through SLOAD and SSTORE and never see tree keys. Key derivation runs inside the client, below the EVM, exactly as the MPT already hashes slot keys and addresses. No contract, Solidity, or Yul code changes.

EXTCODEHASH is unaffected since the code_hash leaf stores the Keccak hash of the account’s code regardless of the tree’s own merkelization hash.

Test Cases

The hash function is not fixed, so digests cannot be pinned. The deterministic parts of the derivation are given as vectors. H(x) is the full 32-byte digest of x.

Account header, BASIC_DATA of address A:

key    = 0x00 || H(A) || 0x00
length = 1 + 32 + 1 = 34 bytes

Storage slot storage_key = 5 of address A (in the header, since 5 < 64):

sub_idx = HEADER_STORAGE_OFFSET + 5 = 69 (0x45)
key     = 0x00 || H(A) || 0x45
length  = 34 bytes

Storage slot storage_key = 1000 (in the storage zone, since 1000 >= 64):

tree_index = 1000 // 256 = 3
sub_idx    = 1000 %  256 = 232 (0xE8)
key        = 0xFF || H(A) || H(A || 3) || 0xE8
length     = 1 + 32 + 32 + 1 = 66 bytes

Code chunk chunk_id = 5 (in the header, since 5 < 128):

sub_idx = CODE_OFFSET + 5 = 133 (0x85)
key     = 0x00 || H(A) || 0x85
length  = 34 bytes

Code chunk chunk_id = 300 of bytecode with hash C (overflow, since 300 >= 128):

overflow   = 300 - 128 = 172
tree_index = 172 // 256 = 0
sub_idx    = 172 %  256 = 172 (0xAC)
key        = 0x01 || H(C || 0) || 0xAC
length     = 34 bytes

A || 3 and C || 0 denote A (respectively C) concatenated with the 32-byte big-endian encoding of the integer.

Security Considerations

A collision means two distinct items derive the same key.

Keys contain three hash-derived components:

• key_hash(address): both the account stem and the storage bucket.
• key_hash(address || tree_index): the storage suffix.
• key_hash(code_hash || tree_index): the code stem.

Each is a full 256-bit digest, so any collision costs about 2^128 birthday work, far beyond reach. Keys of different zones differ in their first byte and cannot collide at all.

Content-addressed code. Two contracts with identical bytecode share code-zone leaves by design, which is deduplication, not a collision. Two distinct bytecodes mapping to the same stem would need a 256-bit collision, on Keccak for code_hash or on key_hash(code_hash || tree_index), either of which is infeasible.

Sub-index. The sub-index is storage_key % 256 or the analogous code arithmetic, a direct mapping rather than a hash. Two distinct keys share a sub-index only if they also share a stem, in which case they are the same item, so no collision is possible between distinct items.

Grinding. key_hash(address || tree_index) places a storage group in its account’s bucket, and tree_index comes from the slot number. An attacker chooses slots freely: directly in their own contract, or through mapping keys in any contract that hashes them into slots.

Grinding for digests that share k leading bits would deepen the tree. Without compression that buys a k-node chain for about 2^(k/2) work.

Compression folds the run into one BranchNode prefix of about k/8 bytes (see “Tree depth”), and d real extra nodes cost about 2^d work. The address in the digest stops cross-contract reuse, so a slot set found by grinding for one contract is random in every other.

Preimage. Every node’s hash preimage begins with a one-byte tag (LEAF_TAG or BRANCH_TAG) distinguishing the two node types, and a BranchNode’s prefix carries an explicit bit count. This makes the mapping from logical node to preimage injective; no leaf and branch preimage can coincide, and no two prefixes of different bit length pack to the same bytes.

Copyright

Copyright and related rights waived via CC0.

Citation

Please cite this document as:

Vitalik Buterin (@vbuterin), Guillaume Ballet (@gballet), Dankrad Feist (@dankrad), Ignacio Hagopian (@jsign), Kevaundray Wedderburn (@kevaundray), Tanishq Jasoria (@tanishqjasoria), Gajinder Singh (@g11tech), Danno Ferrin (@shemnon), Piper Merriam (@pipermerriam), Gottfried Herold (@GottfriedHerold), Wei Han Ng (@weiihann), Carlos Perez (@CPerezz), "EIP-8297: Partitioned Binary Tree [DRAFT]," Ethereum Improvement Proposals, no. 8297, June 2026. Available: https://eips.ethereum.org/EIPS/eip-8297.
